Featuring a heavy-duty, extra-long bed that can be fully customized to meet specific user requirements, this machine delivers exceptional rigidity and thermal stability for precise, reliable machining. Standard configuration includes an 8″ hydraulic chuck, A2-6 spindle, 10.4-inch color LCD display, spindle C-axis indexing, optional flexible control system, and a chip conveyor with cart. The X/Z axes are equipped with 55mm linear guideways for superior stability and smooth motion, while the turret utilizes a large 420-size tool plate, allowing for multiple tooling options and high-efficiency cutting. Designed for heavy-duty applications, it ensures consistent accuracy even under high loads, making it ideal for large and complex workpieces.
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|

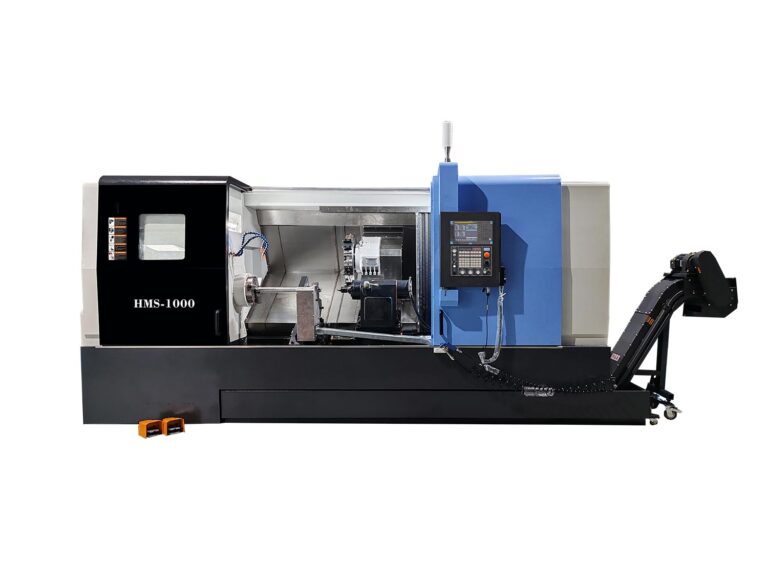

| HMS-1000-A | HMS-1000-B | HMS-1000-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ650 | Φ650 | Φ650 |
| Swing Diameter over Saddle | mm | Φ430 | Φ430 | Φ430 | |
| Maximum Turning Diameter | mm | Φ630 | Φ630 | Φ630 | |
| Interference Diameter for Adjacent Tools | mm | Φ235 | Φ235 | Φ235 | |
| Maximum Turning Length | mm | 1050 | 1030 | 1000 | |
| X-axis Maximum Travel | mm | 365 | 365 | 365 | |
| Z-axis Maximum Travel | mm | 1100 | 1100 | 1100 | |
| X-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 15/24 | 15/24 | 15/24 | |
| Spindle | Spindle Nose | – | A2-8 | A2-8 | A2-11 |
| Spindle Diameter | mm | Assembled Type | Assembled Type | Assembled Type | |
| Bar Pass-through Specification (Standard/Optional) | mm | Φ75 | Φ75 | Φ90 | |
| Chuck Size | inch | 10＂ | 12＂ | 12＂ | |
| Maximum Spindle Speed | RPM | 2600 | 2600 | 2000 | |
| Spindle Motor Power (Continuous/30min) | kW | 15.0/18.5 | 15.0/18.5 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 143 | 143 | 220 | |
| C-axis Resolution | / | 1024 | 1024 | 1024 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Center Height | mm | 125 | 125 | 125 |
| Tool Disc Width Across Flats | mm | 480 | 480 | 480 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 32 | 32 | 32 | |
| Boring Tool Holder Aperture | mm | 50 | 50 | 50 | |
| Tailstock | Center Distance | mm | 1150 | 1150 | 1150 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 4.0*2.1*2.0 | 4.0*2.1*2.0 | 4.0*2.1*2.0 |
| Length Including Water Tank and Chip Conveyor | m | 5.3 | 5.3 | 5.3 | |
| Approximate Machine Weight | kg | 7000 | 7000 | 7000 | |
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|

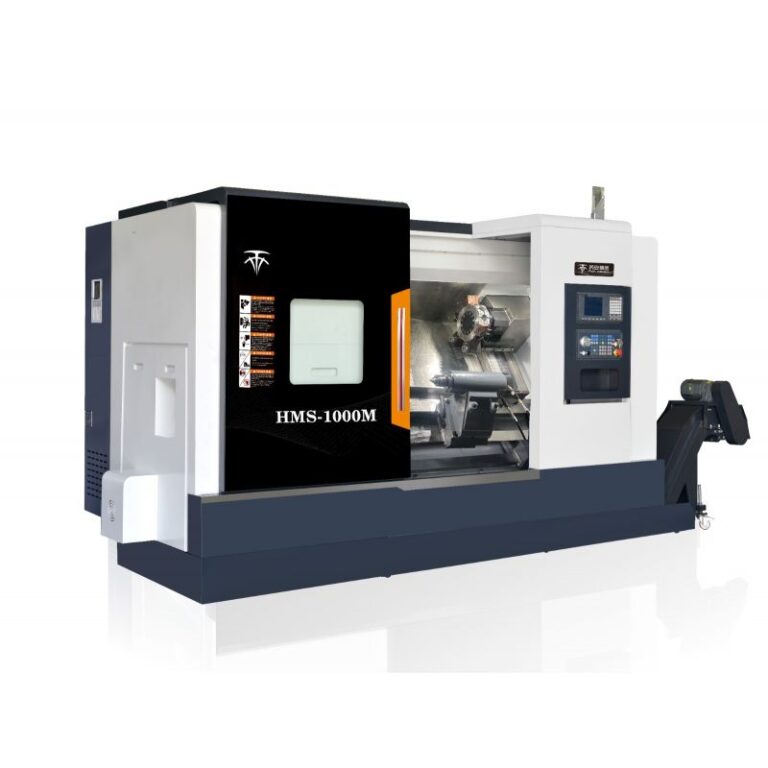

| HMS-1000M-A | HMS-1000M-B | HMS-1000M-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ580 | Φ580 | Φ580 |
| Swing Diameter over Saddle | mm | Φ330 | Φ330 | Φ330 | |
| Maximum Turning Diameter | mm | Φ450 | Φ450 | Φ450 | |
| Interference Diameter for Adjacent Tools | mm | Φ202 | Φ202 | Φ202 | |
| Maximum Turning Length | mm | 1000 | 985 | 960 | |
| X-axis Maximum Travel | mm | 260 | 260 | 260 | |
| Z-axis Maximum Travel | mm | 1050 | 1050 | 1050 | |
| X-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 24 | 24 | 24 | |
| Spindle | Spindle Nose | – | A2-6 | A2-6 | A2-8 |
| Spindle Diameter | mm | Φ200 | Φ200 | Φ230 | |
| Bar Pass-through Specification (Standard/Optional) | mm | Φ52/65 | Φ52/65 | Φ75/90 | |
| Chuck Size | inch | 8＂ | 10＂ | 10＂ | |
| Maximum Spindle Speed | RPM | 4200 | 4200 | 3000 | |
| Spindle Motor Power (Continuous/30min) | kW | 11.0/15.0 | 11.0/15.0 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 105 | 105 | 143 | |
| C-axis Resolution | 1/n | 1024 | 1024 | 1024 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Center Height | mm | 100 | 100 | 100 |
| Tool Disc Width Across Flats | mm | 420 | 420 | 420 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 25 | 25 | 25 | |
| Boring Tool Holder Aperture | mm | 40 | 40 | 40 | |
| Tailstock | Center Distance | mm | 1030 | 1030 | 1030 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 3.28*1.84*1.88 | 3.28*1.84*1.88 | 3.28*1.84*1.88 |
| Length Including Water Tank and Chip Conveyor | m | 4.44 | 4.44 | 4.44 | |
| Approximate Machine Weight | kg | 5000 | 5000 | 5000 | |
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|
| HMS-1000MY-A | HMS-1000MY-B | HMS-1000MY-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ700 | Φ700 | Φ700 |
| Swing Diameter over Saddle | mm | Φ500 | Φ500 | Φ500 | |
| Maximum Turning Diameter | mm | Φ550 | Φ550 | Φ550 | |
| Interference Diameter for Adjacent Tools | mm | Φ240 | Φ240 | Φ240 | |
| Maximum Turning Length | mm | 940 | 920 | 890 | |
| X-axis Maximum Travel | mm | 365 | 365 | 365 | |
| Y-axis Maximum Travel | mm | 150(±75） | 150(±75） | 150(±75） | |
| Z-axis Maximum Travel | mm | 1100 | 1100 | 1100 | |
| X-axis Motor Power | kW | 3 | 3 | 3 | |
| Y-axis Motor Power | kW | 1.8 | 1.8 | 1.8 | |
| Z-axis Motor Power | kW | 3 | 3 | 3 | |
| X-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| Y-axis Motor Torque (Rated/Maximum) | N·m | 11.0/27.0 | 11.0/27.0 | 11.0/27.0 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 15/24 | 15/24 | 15/24 | |
| Y-axis Rapid Traverse Speed | m/min | 10 | 10 | 10 | |
| Spindle | Spindle Nose | – | A2-8 | A2-8 | A2-11 |
| Spindle Diameter | mm | Assembled Type | Assembled Type | Assembled Type | |
| Bar Pass-through Specification (Standard/Optional) | mm | Φ75 | Φ75 | Φ90 | |
| Chuck Size | inch | 10＂ | 12＂ | 12＂ | |
| Maximum Spindle Speed | RPM | 2600 | 2600 | 2000 | |
| Spindle Motor Power (Continuous/30min) | kW | 15.0/18.5 | 15.0/18.5 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 143 | 143 | 220 | |
| C-axis Resolution | / | 1024X512 | 1024X512 | 1024X512 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Interface Specification | – | BMT65 | BMT65 | BMT65 |
| Center Height | mm | 195 | 195 | 195 | |
| Tool Disc Width Across Flats | mm | 400 | 400 | 400 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 25 | 25 | 25 | |
| Boring Tool Holder Aperture | mm | 40 | 40 | 40 | |
| Number of Live Tools | pcs | 12 | 12 | 12 | |
| Live Tool Collet | – | ER32/40 | ER32/40 | ER32/40 | |
| Live Tool Motor Power | kW | 2.7 | 2.7 | 2.7 | |
| Live Tool Maximum Torque | N·m | 46 | 46 | 46 | |
| Maximum Live Tool Speed | rpm | 4000 | 4000 | 4000 | |
| Tailstock | Center Distance | mm | 1150 | 1150 | 1150 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 4.0*2.1*2.35 | 4.0*2.1*2.35 | 4.0*2.1*2.35 |
| Length Including Water Tank and Chip Conveyor | m | 5.3 | 5.3 | 5.3 | |
| Approximate Machine Weight | kg | 7800 | 7800 | 7800 | |
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|
| HMS-2000-A | HMS-2000-B | HMS-2000-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ800 | Φ800 | Φ800 |
| Swing Diameter over Saddle | mm | Φ550 | Φ550 | Φ550 | |
| Maximum Turning Diameter | mm | Φ630 | Φ630 | Φ630 | |
| Interference Diameter for Adjacent Tools | mm | Φ238 | Φ238 | Φ238 | |
| Maximum Turning Length | mm | 2000 | 1960 | 1880 | |
| X-axis Maximum Travel | mm | 350 | 350 | 350 | |
| Z-axis Maximum Travel | mm | 2100 | 2100 | 2100 | |
| X-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 24/24 | 24/24 | 24/24 | |
| Spindle | Spindle Nose | – | A2-8 | A2-8 | A2-11 |
| Spindle Diameter | mm | Assembled Type | Assembled Type | Assembled Type | |
| Bar Pass-through Specification (Standard) | mm | Φ75 | Φ75 | Φ90 | |
| Chuck Size | inch | 10＂ | 12＂ | 12＂ | |
| Maximum Spindle Speed | RPM | 2600 | 2600 | 2000 | |
| Spindle Motor Power (Continuous/30min) | kW | 15.0/18.5 | 15.0/18.5 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 143 | 143 | 220 | |
| C-axis Resolution | / | 1024 | 1024 | 1024 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Center Height | mm | 125 | 125 | 125 |
| Tool Disc Width Across Flats | mm | 480 | 480 | 480 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 32 | 32 | 32 | |
| Boring Tool Holder Aperture | mm | 50 | 50 | 50 | |
| Tailstock | Center Distance | mm | 2050 | 2050 | 2050 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 5.25*2.36*2.26 | 5.25*2.36*2.26 | 5.25*2.36*2.26 |
| Length Including Water Tank and Chip Conveyor | m | 5.95 | 5.95 | 5.95 | |
| Approximate Machine Weight | kg | 8000 | 8000 | 8000 | |
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|
| HMS-2000M-A | HMS-2000M-B | HMS-2000M-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ800 | Φ800 | Φ800 |
| Swing Diameter over Saddle | mm | Φ550 | Φ550 | Φ550 | |
| Maximum Turning Diameter | mm | Φ600 | Φ600 | Φ600 | |
| Interference Diameter for Adjacent Tools | mm | Φ241 | Φ241 | Φ241 | |
| Maximum Turning Length | mm | 1900 | 1860 | 1780 | |
| X-axis Maximum Travel | mm | 350 | 350 | 350 | |
| Z-axis Maximum Travel | mm | 2100 | 2100 | 2100 | |
| X-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 24/24 | 24/24 | 24/24 | |
| Spindle | Spindle Nose | – | A2-8 | A2-8 | A2-11 |
| Spindle Diameter | mm | Assembled Type | Assembled Type | Assembled Type | |
| Bar Pass-through Specification (Standard/Optional) | mm | Φ75 | Φ75 | Φ90 | |
| Chuck Size | inch | 10＂ | 12＂ | 12＂ | |
| Maximum Spindle Speed | RPM | 2600 | 2600 | 2000 | |
| Spindle Motor Power (Continuous/30min) | kW | 15.0/18.5 | 15.0/18.5 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 143 | 143 | 220 | |
| C-axis Resolution | / | 1024X512 | 1024X512 | 1024X512 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Interface Specification | – | BMT65 | BMT65 | BMT65 |
| Center Height | mm | 125 | 125 | 125 | |
| Tool Disc Width Across Flats | mm | 400 | 400 | 400 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 25 | 25 | 25 | |
| Boring Tool Holder Aperture | mm | 40 | 40 | 40 | |
| Number of Live Tools | pcs | 12 | 12 | 12 | |
| Live Tool Collet | – | ER32/40 | ER32/40 | ER32/40 | |
| Live Tool Motor Power (Rated/Maximum) | kW | 3.7/5.5 | 3.7/5.5 | 3.7/5.5 | |
| Live Tool Torque (Rated/Maximum) | N·m | 17.7/47.8 | 17.7/47.8 | 17.7/47.8 | |
| Maximum Live Tool Speed | rpm | 5000 | 5000 | 5000 | |
| Tailstock | Center Distance | mm | 2050 | 2050 | 2050 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 5.25*2.36*2.26 | 5.25*2.36*2.26 | 5.25*2.36*2.26 |
| Length Including Water Tank and Chip Conveyor | m | 5.95 | 5.95 | 5.95 | |
| Approximate Machine Weight | kg | 8000 | 8000 | 8000 | |
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|
| HMS-2000MY-A | HMS-2000MY-B | HMS-2000MY-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ800 | Φ800 | Φ800 |
| Swing Diameter over Saddle | mm | Φ550 | Φ550 | Φ550 | |
| Maximum Turning Diameter | mm | Φ580 | Φ580 | Φ580 | |
| Interference Diameter for Adjacent Tools | mm | Φ241 | Φ241 | Φ241 | |
| Maximum Turning Length | mm | 1850 | 1810 | 1730 | |
| X-axis Maximum Travel | mm | 350 | 350 | 350 | |
| Y-axis Maximum Travel | mm | 150(±75） | 150(±75） | 150(±75） | |
| Z-axis Maximum Travel | mm | 2100 | 2100 | 2100 | |
| X-axis Motor Power | kW | 3 | 3 | 3 | |
| Y-axis Motor Power | kW | 1.8 | 1.8 | 1.8 | |
| Z-axis Motor Power | kW | 3 | 3 | 3 | |
| X-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| Y-axis Motor Torque (Rated/Maximum) | N·m | 11.0/27.0 | 11.0/27.0 | 11.0/27.0 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 24/24 | 24/24 | 24/24 | |
| Y-axis Rapid Traverse Speed | m/min | 10 | 10 | 10 | |
| Spindle | Spindle Nose | – | A2-8 | A2-8 | A2-11 |
| Spindle Diameter | mm | Assembled Type | Assembled Type | Assembled Type | |
| Bar Pass-through Specification (Standard/Optional) | mm | Φ75 | Φ75 | Φ90 | |
| Chuck Size | inch | 10＂ | 12＂ | 12＂ | |
| Maximum Spindle Speed | RPM | 2600 | 2600 | 2000 | |
| Spindle Motor Power (Continuous/30min) | kW | 15.0/18.5 | 15.0/18.5 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 143 | 143 | 220 | |
| C-axis Resolution | 1/n | 1024X512 | 1024X512 | 1024X512 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Interface Specification | – | BMT65 | BMT65 | BMT65 |
| Center Height | mm | 195 | 195 | 195 | |
| Tool Disc Width Across Flats | mm | 400 | 400 | 400 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 25 | 25 | 25 | |
| Boring Tool Holder Aperture | mm | 40 | 40 | 40 | |
| Number of Live Tools | pcs | 12 | 12 | 12 | |
| Live Tool Collet | – | ER32/40 | ER32/40 | ER32/40 | |
| Live Tool Motor Power (Rated/Maximum) | kW | 3.7/5.5 | 3.7/5.5 | 3.7/5.5 | |
| Live Tool Torque (Rated/Maximum) | N·m | 17.7/47.8 | 17.7/47.8 | 17.7/47.8 | |
| Maximum Live Tool Speed | rpm | 5000 | 5000 | 5000 | |
| Tailstock | Center Distance | mm | 2050 | 2050 | 2050 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 5.25*2.36*2.45 | 5.25*2.36*2.45 | 5.25*2.36*2.45 |
| Length Including Water Tank and Chip Conveyor | m | 5.95 | 5.95 | 5.95 | |
| Approximate Machine Weight | kg | 8500 | 8500 | 8500 | |
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|
| HMS-3000-A | HMS-3000-B | HMS-3000-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ800 | Φ800 | Φ800 |
| Swing Diameter over Saddle | mm | Φ550 | Φ550 | Φ550 | |
| Maximum Turning Diameter | mm | Φ630 | Φ630 | Φ630 | |
| Interference Diameter for Adjacent Tools | mm | Φ238 | Φ238 | Φ238 | |
| Maximum Turning Length | mm | 3100 | 3060 | 2980 | |
| X-axis Maximum Travel | mm | 350 | 350 | 350 | |
| Z-axis Maximum Travel | mm | 3150 | 3150 | 3150 | |
| X-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 24/24 | 24/24 | 24/24 | |
| Spindle | Spindle Nose | – | A2-8 | A2-8 | A2-11 |
| Spindle Diameter | mm | Assembled Type | Assembled Type | Assembled Type | |
| Bar Pass-through Specification (Standard) | mm | Φ75 | Φ75 | Φ90 | |
| Chuck Size | inch | 10＂ | 12＂ | 12＂ | |
| Maximum Spindle Speed | RPM | 2600 | 2600 | 2000 | |
| Spindle Motor Power (Continuous/30min) | kW | 15.0/18.5 | 15.0/18.5 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 143 | 143 | 220 | |
| C-axis Resolution | / | 1024 | 1024 | 1024 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Center Height | mm | 125 | 125 | 125 |
| Tool Disc Width Across Flats | mm | 480 | 480 | 480 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 32 | 32 | 32 | |
| Boring Tool Holder Aperture | mm | 50 | 50 | 50 | |
| Tailstock | Center Distance | mm | 3150 | 3150 | 3150 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 6.63*2.36*2.26 | 6.63*2.36*2.26 | 6.63*2.36*2.26 |
| Length Including Water Tank and Chip Conveyor | m | 7.83 | 7.83 | 7.83 | |
| Approximate Machine Weight | kg | 8800 | 8800 | 8800 | |
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|
| HMS-3000M-A | HMS-3000M-B | HMS-3000M-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ800 | Φ800 | Φ800 |
| Swing Diameter over Saddle | mm | Φ550 | Φ550 | Φ550 | |
| Maximum Turning Diameter | mm | Φ580 | Φ580 | Φ580 | |
| Interference Diameter for Adjacent Tools | mm | Φ241 | Φ241 | Φ241 | |
| Maximum Turning Length | mm | 3000 | 2960 | 2880 | |
| X-axis Maximum Travel | mm | 350 | 350 | 350 | |
| Z-axis Maximum Travel | mm | 3150 | 3150 | 3150 | |
| X-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 24/24 | 24/24 | 24/24 | |
| Spindle | Spindle Nose | – | A2-8 | A2-8 | A2-11 |
| Spindle Diameter | mm | Assembled Type | Assembled Type | Assembled Type | |
| Bar Pass-through Specification (Standard/Optional) | mm | Φ75 | Φ75 | Φ90 | |
| Chuck Size | inch | 10＂ | 12＂ | 12＂ | |
| Maximum Spindle Speed | RPM | 2600 | 2600 | 2000 | |
| Spindle Motor Power (Continuous/30min) | kW | 15.0/18.5 | 15.0/18.5 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 143 | 143 | 220 | |
| C-axis Resolution | / | 1024X512 | 1024X512 | 1024X512 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Interface Specification | – | BMT65 | BMT65 | BMT65 |
| Center Height | mm | 125 | 125 | 125 | |
| Tool Disc Width Across Flats | mm | 400 | 400 | 400 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 25 | 25 | 25 | |
| Boring Tool Holder Aperture | mm | 40 | 40 | 40 | |
| Number of Live Tools | pcs | 12 | 12 | 12 | |
| Live Tool Collet | – | ER32/40 | ER32/40 | ER32/40 | |
| Live Tool Motor Power (Rated/Maximum) | kW | 3.7/5.5 | 3.7/5.5 | 3.7/5.5 | |
| Live Tool Torque (Rated/Maximum) | N·m | 17.7/47.8 | 17.7/47.8 | 17.7/47.8 | |
| Maximum Live Tool Speed | rpm | 5000 | 5000 | 5000 | |
| Tailstock | Center Distance | mm | 3150 | 3150 | 3150 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 6.63*2.36*2.26 | 6.63*2.36*2.26 | 6.63*2.36*2.26 |
| Length Including Water Tank and Chip Conveyor | m | 7.83 | 7.83 | 7.83 | |
| Approximate Machine Weight | kg | 8800 | 8800 | 8800 | |
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|
| HMS-3000MY-A | HMS-3000MY-B | HMS-3000MY-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ580 | Φ580 | Φ580 |
| Swing Diameter over Saddle | mm | Φ330 | Φ330 | Φ330 | |
| Maximum Turning Diameter | mm | Φ450 | Φ450 | Φ450 | |
| Interference Diameter for Adjacent Tools | mm | Φ202 | Φ202 | Φ202 | |
| Maximum Turning Length | mm | 1000 | 985 | 960 | |
| X-axis Maximum Travel | mm | 260 | 260 | 260 | |
| Z-axis Maximum Travel | mm | 1050 | 1050 | 1050 | |
| X-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 24 | 24 | 24 | |
| Spindle | Spindle Nose | – | A2-6 | A2-6 | A2-8 |
| Spindle Diameter | mm | Φ200 | Φ200 | Φ230 | |
| Bar Pass-through Specification (Standard/Optional) | mm | Φ52/65 | Φ52/65 | Φ75/90 | |
| Chuck Size | inch | 8＂ | 10＂ | 10＂ | |
| Maximum Spindle Speed | RPM | 4200 | 4200 | 3000 | |
| Spindle Motor Power (Continuous/30min) | kW | 11.0/15.0 | 11.0/15.0 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 105 | 105 | 143 | |
| C-axis Resolution | 1/n | 1024 | 1024 | 1024 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Center Height | mm | 100 | 100 | 100 |
| Tool Disc Width Across Flats | mm | 420 | 420 | 420 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 25 | 25 | 25 | |
| Boring Tool Holder Aperture | mm | 40 | 40 | 40 | |
| Tailstock | Center Distance | mm | 1030 | 1030 | 1030 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 3.28*1.84*1.88 | 3.28*1.84*1.88 | 3.28*1.84*1.88 |
| Length Including Water Tank and Chip Conveyor | m | 4.44 | 4.44 | 4.44 | |
| Approximate Machine Weight | kg | 5000 | 5000 | 5000 | |
