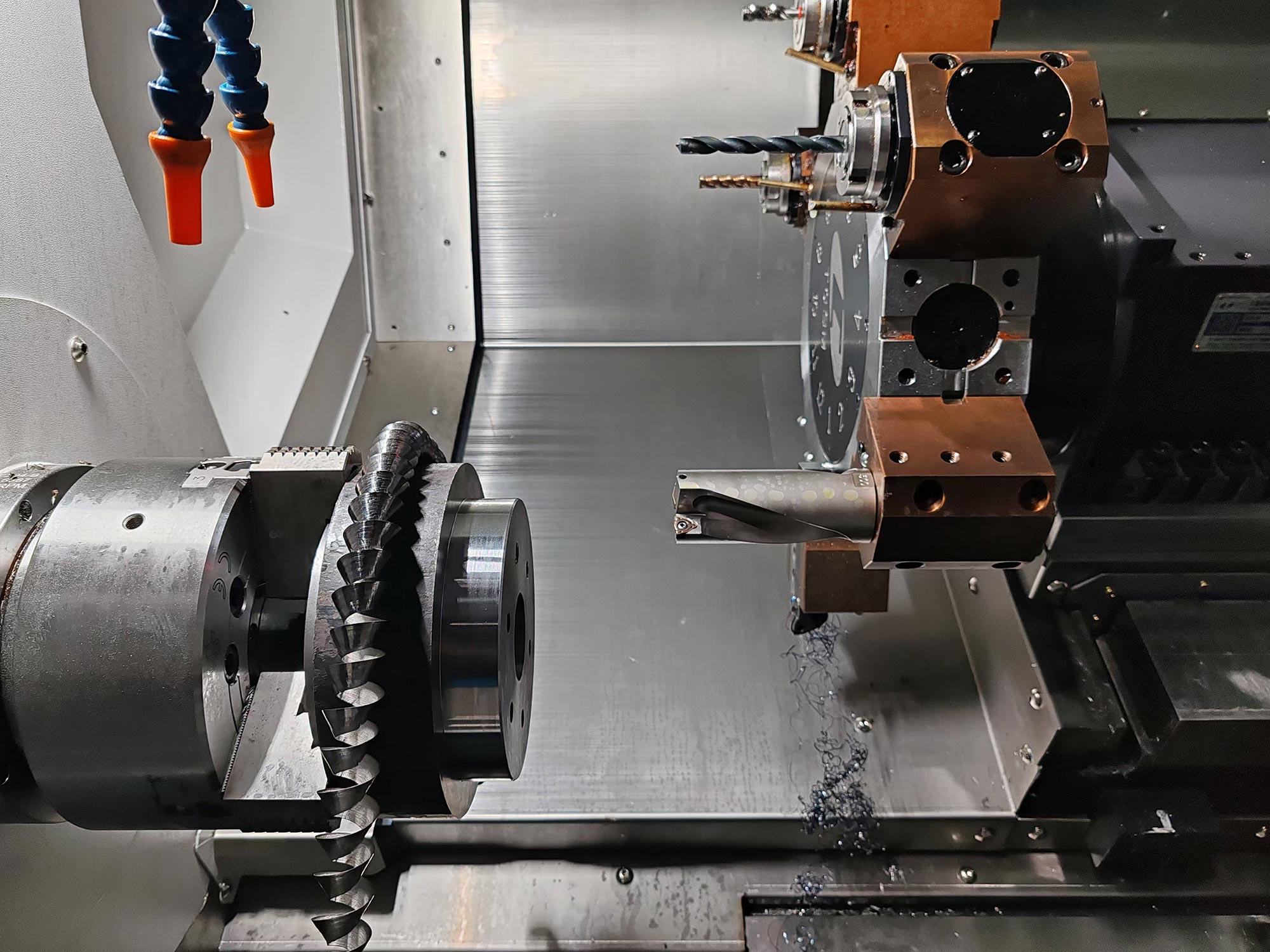

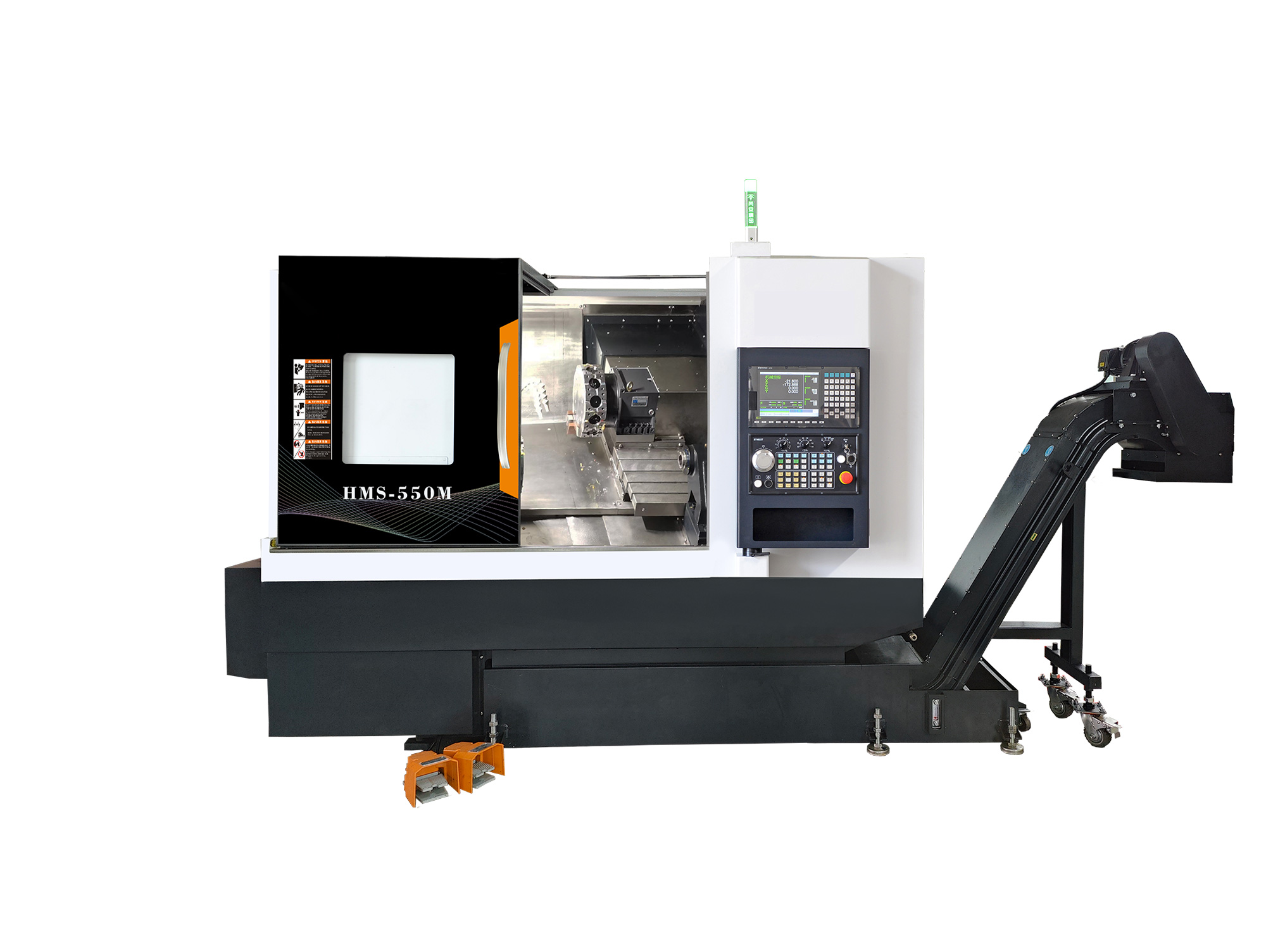

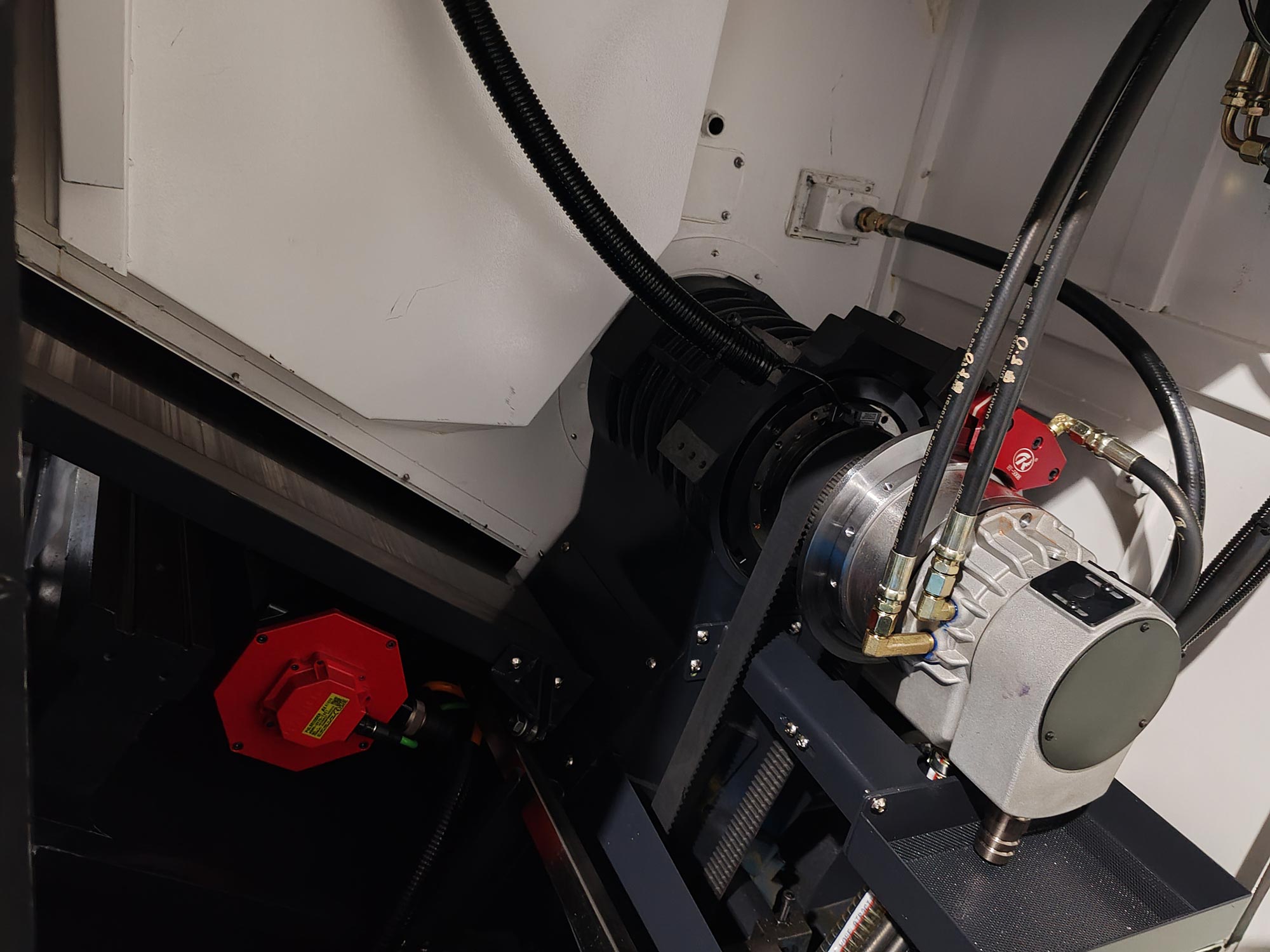

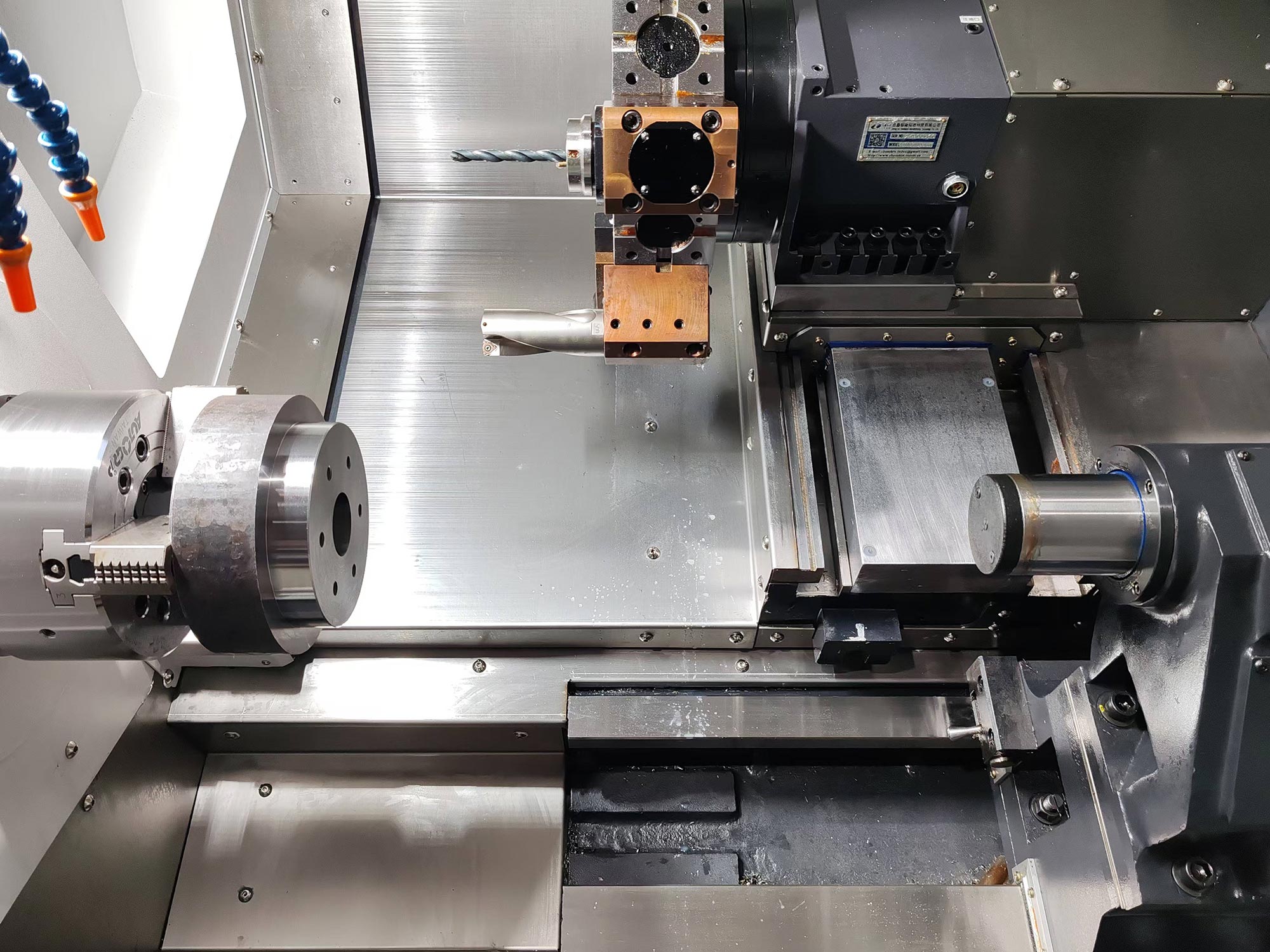

Combining the rapid, precise tool-changing capability of a servo turret with the strong milling capacity of high-speed driven tools, this machine achieves outstanding turning-milling composite performance. The turret features a high-rigidity BMT mounting interface, with the driven tool spindle directly powered by the servo spindle motor. Standard configuration includes 6″/8″ hydraulic chuck system, A2-5/A2-6 spindle head, 10.4-inch color LCD display, built-in USB interface, spindle orientation, rigid tapping, optional intelligent control system, and automatic chip conveyor.
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|
| HMS-320M-A | HMS-320M-B | HMS-320M-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ550 | Φ550 | Φ550 |
| Swing Diameter over Saddle | mm | Φ260 | Φ260 | Φ260 | |
| Maximum Turning Diameter | mm | Φ380 | Φ380 | Φ380 | |
| Interference Diameter for Adjacent Tools | mm | Φ180 | Φ180 | Φ180 | |
| Maximum Turning Length | mm | 360 | 345 | 320 | |
| X-axis Maximum Travel | mm | 250 | 250 | 250 | |
| Z-axis Maximum Travel | mm | 450 | 450 | 450 | |
| X-axis Motor Power | kW | 1.2 | 1.2 | 1.2 | |
| Z-axis Motor Power | kW | 1.2 | 1.2 | 1.2 | |
| X-axis Motor Torque (Rated/Maximum) | N·m | 7.0/15.0 | 7.0/15.0 | 7.0/15.0 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 7.0/15.0 | 7.0/15.0 | 7.0/15.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 24 | 24 | 24 | |
| Spindle | Spindle Nose | – | A2-5 | A2-5 | A2-6 |
| Spindle Diameter | mm | Φ170 | Φ170 | Φ200 | |
| Bar Pass-through Specification (Standard/Optional) | mm | Φ46 | Φ46 | Φ52 | |
| Chuck Size | inch | 6＂ | 8＂ | 8＂ | |
| Maximum Spindle Speed | RPM | 6000 | 4200 | 4200 | |
| Spindle Motor Power (Continuous/30min) | kW | 7.5/9.0 | 7.5/9.0 | 11.0/15.0 | |
| Spindle Motor Torque (Rated) | N·m | 59.7 | 59.7 | 105 | |
| C-axis Resolution | / | 256×1024 | 256×1024 | 256×1024 | |
| Control System | FANUC (Syntec optional) | ||||
| Tool Turret | Interface Specification | – | BMT45 | BMT45 | BMT45 |
| Center Height | mm | 80 | 80 | 80 | |
| Tool Disc Width Across Flats | mm | 290 | 290 | 290 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 25 | 25 | 25 | |
| Boring Tool Holder Aperture | mm | 32 | 32 | 32 | |
| Number of Live Tools | pcs | 12 | 12 | 12 | |
| Live Tool Collet | – | ER25 | ER25 | ER25 | |
| Live Tool Motor Power | kW | 2.7 | 2.7 | 2.7 | |
| Maximum Torque of Live Tool | N·m | 46 | 46 | 46 | |
| Maximum Speed of Live Tool | rpm | 4000 | 4000 | 4000 | |
| Tailstock | Center Distance | mm | 480 | 480 | 480 |
| Driving Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 4# | 4# | 4# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 2.3*1.78*1.8 | 2.3*1.78*1.8 | 2.3*1.78*1.8 |
| Length Including Chip Conveyor | m | 3.5 | 3.5 | 3.5 | |
| Approximate Machine Weight | kg | 3500 | 3500 | 3500 | |
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|
| HMS-550M-A | HMS-550M-B | HMS-550M-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ660 | Φ660 | Φ660 |
| Swing Diameter over Saddle | mm | Φ400 | Φ400 | Φ400 | |
| Maximum Turning Diameter | mm | Φ400 | Φ400 | Φ400 | |
| Interference Diameter for Adjacent Tools | mm | Φ203 | Φ203 | Φ203 | |
| Maximum Turning Length | mm | 485 | 460 | 445 | |
| X-axis Maximum Travel | mm | 260 | 260 | 260 | |
| Z-axis Maximum Travel | mm | 600 | 600 | 600 | |
| X-axis Motor Power | kW | 1.8 | 1.8 | 3 | |
| Z-axis Motor Power | kW | 1.8 | 1.8 | 3 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 11.0/27.0 | 11.0/27.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 24 | 24 | 24 | |
| Spindle | Spindle Nose | – | A2-6 | A2-6 | A2-8 |
| Spindle Diameter | mm | Φ200 | Φ200 | Φ230 | |
| Bar Pass-through Specification (Standard/Optional) | mm | Φ52/65 | Φ52/65 | Φ75/90 | |
| Chuck Size | inch | 8＂ | 10＂ | 10＂ | |
| Maximum Spindle Speed | RPM | 4200 | 4200 | 3000 | |
| Spindle Motor Power (Continuous/30min) | kW | 11.0/15.0 | 11.0/15.0 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 105 | 105 | 143 | |
| C-axis Resolution | / | 1024X384 | 1024X384 | 1024X384 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Interface Specification | – | BMT55 | BMT55 | BMT55 |
| Center Height | mm | 100 | 100 | 100 | |
| Tool Disc Width Across Flats | mm | 330 | 330 | 330 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 25 | 25 | 25 | |
| Boring Tool Holder Aperture | mm | 40 | 40 | 40 | |
| Number of Live Tools | pcs | 12 | 12 | 12 | |
| Live Tool Collet | – | ER32 | ER32 | ER32 | |
| Live Tool Motor Power | kW | 2.7 | 2.7 | 2.7 | |
| Maximum Speed of Live Tool | rpm | 4000 | 4000 | 4000 | |
| Tailstock | Center Distance | mm | 580 | 580 | 580 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 2.74*1.84*1.88 | 2.74*1.84*1.88 | 2.74*1.84*1.88 |
| Length Including Water Tank and Chip Conveyor | m | 3.92 | 3.92 | 3.92 | |
| Approximate Machine Weight | kg | 4200 | 4200 | 4200 | |
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|
| HMS-750M-A | HMS-750M-B | HMS-750M-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ660 | Φ660 | Φ660 |
| Swing Diameter over Saddle | mm | Φ400 | Φ400 | Φ400 | |
| Maximum Turning Diameter | mm | Φ400 | Φ400 | Φ400 | |
| Interference Diameter for Adjacent Tools | mm | Φ203 | Φ203 | Φ203 | |
| Maximum Turning Length | mm | 685 | 660 | 645 | |
| X-axis Maximum Travel | mm | 260 | 260 | 260 | |
| Z-axis Maximum Travel | mm | 800 | 800 | 800 | |
| X-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 24 | 24 | 24 | |
| Spindle | Spindle Nose | – | A2-6 | A2-6 | A2-8 |
| Spindle Diameter | mm | Φ200 | Φ200 | Φ230 | |
| Bar Pass-through Specification (Standard/Optional) | mm | Φ52/65 | Φ52/65 | Φ75/90 | |
| Chuck Size | inch | 8＂ | 10＂ | 10＂ | |
| Maximum Spindle Speed | RPM | 4200 | 4200 | 3000 | |
| Spindle Motor Power (Continuous/30min) | kW | 11.0/15.0 | 11.0/15.0 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 105 | 105 | 143 | |
| C-axis Resolution | / | 1024X384 | 1024X384 | 1024X384 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Interface Specification | – | BMT55 | BMT55 | BMT55 |
| Center Height | mm | 100 | 100 | 100 | |
| Tool Disc Width Across Flats | mm | 330 | 330 | 330 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 25 | 25 | 25 | |
| Boring Tool Holder Aperture | mm | 40 | 40 | 40 | |
| Number of Live Tools | pcs | 12 | 12 | 12 | |
| Live Tool Collet | – | ER32 | ER32 | ER32 | |
| Live Tool Motor Power | kW | 2.7 | 2.7 | 2.7 | |
| Maximum Speed of Live Tool | rpm | 4000 | 4000 | 4000 | |
| Tailstock | Center Distance | mm | 780 | 780 | 780 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 3.07*1.84*1.88 | 3.07*1.84*1.88 | 3.07*1.84*1.88 |
| Length Including Water Tank and Chip Conveyor | m | 4.24 | 4.24 | 4.24 | |
| Approximate Machine Weight | kg | 4500 | 4500 | 4500 | |
| Machine Model | CNC Lathe Series | ||||
|---|---|---|---|---|---|
| HMS-750M-A | HMS-750M-B | HMS-750M-C | |||
| Processing Capacity | Maximum Swing Diameter | mm | Φ660 | Φ660 | Φ660 |
| Swing Diameter over Saddle | mm | Φ400 | Φ400 | Φ400 | |
| Maximum Turning Diameter | mm | Φ400 | Φ400 | Φ400 | |
| Interference Diameter for Adjacent Tools | mm | Φ203 | Φ203 | Φ203 | |
| Maximum Turning Length | mm | 935 | 910 | 895 | |
| X-axis Maximum Travel | mm | 255 | 255 | 255 | |
| Z-axis Maximum Travel | mm | 1050 | 1050 | 1050 | |
| X-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Power | kW | 3 | 3 | 3 | |
| Z-axis Motor Torque (Rated/Maximum) | N·m | 20.0/45.0 | 20.0/45.0 | 20.0/45.0 | |
| X-axis/Z-axis Rapid Traverse Speed | m/min | 24 | 24 | 24 | |
| Spindle | Spindle Nose | – | A2-6 | A2-6 | A2-8 |
| Spindle Diameter | mm | Φ200 | Φ200 | Φ230 | |
| Bar Pass-through Specification (Standard/Optional) | mm | Φ52/65 | Φ52/65 | Φ75/90 | |
| Chuck Size | inch | 8＂ | 10＂ | 10＂ | |
| Maximum Spindle Speed | RPM | 4200 | 4200 | 3000 | |
| Spindle Motor Power (Continuous/30min) | kW | 11.0/15.0 | 11.0/15.0 | 15.0/18.5 | |
| Spindle Motor Torque (Rated) | N·m | 105 | 105 | 143 | |
| C-axis Resolution | 1/n | 1024X384 | 1024X384 | 1024X384 | |
| Control System | FANUC Oi-TF Plus (3B) (Syntec optional) | ||||
| Tool Turret | Interface Specification | – | BMT55 | BMT55 | BMT55 |
| Center Height | mm | 100 | 100 | 100 | |
| Tool Disc Width Across Flats | mm | 330 | 330 | 330 | |
| Number of Tools | pcs | 12 | 12 | 12 | |
| Square Tool Holder Shank Diameter | mm | 25 | 25 | 25 | |
| Boring Tool Holder Aperture | mm | 40 | 40 | 40 | |
| Number of Live Tools | pcs | 12 | 12 | 12 | |
| Live Tool Collet | – | ER32 | ER32 | ER32 | |
| Live Tool Motor Power | kW | 2.7 | 2.7 | 2.7 | |
| Maximum Speed of Live Tool | rpm | 4000 | 4000 | 4000 | |
| Tailstock | Center Distance | mm | 1030 | 1030 | 1030 |
| Drive Method | – | Driven by Z-axis | Driven by Z-axis | Driven by Z-axis | |
| Center Interface | mk | 5# | 5# | 5# | |
| Dimensions & Weight | Machine Overall Dimensions | m | 3.28*1.84*1.88 | 3.28*1.84*1.88 | 3.28*1.84*1.88 |
| Length Including Water Tank and Chip Conveyor | m | 4.44 | 4.44 | 4.44 | |
| Approximate Machine Weight | kg | 5000 | 5000 | 5000 | |
